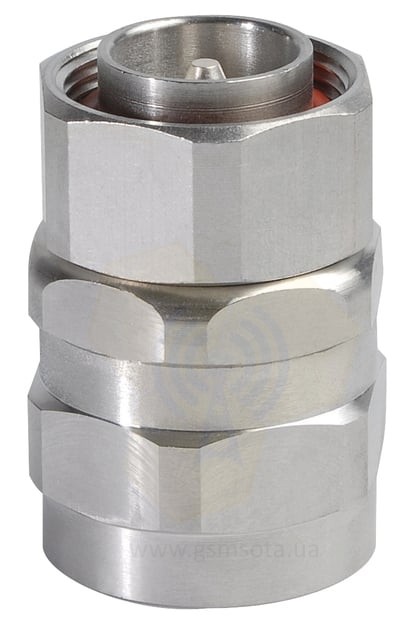

Конектор 78EZDM
Роз'єм 7/16-male (тато), для кабелю AVA5-50FX
- Виробництво: COMMSCOPE
- Країна: USA
Dimensions
| Length |
53.34 mm | 2.100 in |
| Diameter |
37.08 mm | 1.460 in |
| Nominal Size |
7/8 in |
Electrical Specifications
| 3rd Order IMD на Frequency |
-116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method |
Two +43 dBm carriers |
| Insertion Loss Coefficient, typical |
0.05 |
| Cable Impedance |
50 ohm |
| Connector Impedance |
50 ohm |
| dc Test Voltage |
4000 V |
| Inner Contact Resistance, maximum |
0.4 mOhm |
| Insulation Resistance, minimum |
5000 mOhm |
| Operating Frequency Band |
0 - 5000 MHz |
| Outer Contact Resistance, maximum |
1.5 mOhm |
| Peak Power, maximum |
40 kW |
| RF Operating Voltage, maximum (vrms) |
1415 V |
Return Loss/VSWR
| Frequency Band |
VSWR |
Return Loss (dB) |
| 50-1000 MHz |
1.020 |
40.00 |
| 1000-1900 MHz |
1.025 |
38.00 |
| 1900-2200 MHz |
1.032 |
36.00 |
| 2200-2700 MHz |
1.052 |
32.00 |
| 2700-3600 MHz |
1.065 |
30.00 |
| 3600-5000 MHz |
1.094 |
27.00 |
Mechanical Specifications
| Attachment Durability |
25 cycles |
| Connector Retention Tensile Force |
1334.47 N | 300.000 lbf |
| Connector Retention Torque |
8.14 Nm | 72.001 in lb |
| Coupling Nut Proof Torque |
24.86 Nm | 220.003 in lb |
| Coupling Nut Retention Force |
1000.85 N | 225.000 lbf |
| Coupling Nut Retention Force Method |
MIL-C-39012C-3.25, 4.6.22 |
| Insertion Force |
200.17 N | 45.000 lbf |
| Insertion Force Method |
IEC 61169-1:15.2.4 |
| Interface Durability |
500 cycles |
| Interface Durability Method |
IEC 61169-4:9.5 |
| Mechanical Shock Test Method |
MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature |
-40 °C до +85 °C (-40 °F до +185 °F) |
| Storage Temperature |
-55 °C до +85 °C (-67 °F до +185 °F) |
| Attenuation, Ambient Temperature |
20 °C | 68 °F |
| Average Power, Ambient Temperature |
40 °C | 104 °F |
| Corrosion Test Method |
MIL-STD-1344A, Метод 1001.1, Test Condition A |
| Immersion Depth |
1 m |
| Immersion Test Mating |
Mated |
| Immersion Test Method |
IEC 60529:2001, IP68 |
| Moisture Resistance Test Method |
MIL-STD-202F, Method 106F |
| Vibration Test Method |
IEC 60068-2-6 |
| Water Jetting Test Mating |
Mated |
| Water Jetting Test Method |
IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net |
169.74 g | 0.374 lb |
Характеристики
|
Тип кабелю
|
Фидер 7/8
|
|
Серія СВЧ роз'ємів
|
DIN серия
|
|
Відповідна марка кабелю
|
7/8"
|
|
Конструктивне використання
|
прямой
|
|
Покриття центрального контакту
|
Серебро
|
|
Покриття корпусу
|
Серебро
|
|
Монтаж центрального контакту
|
цанговый
|
|
Тип центрального контакту
|
вилка
|
|
Тип роз'єму
|
7/16 DIN male
|
|
Гарантія
|
24 мес
|
|
Бренди
|
Сommscope
|
|
Діапазон робочих температур
|
от -40 до +80 °C
|
|
Країна виробник
|
США
|
|
Колір
|
серебро
|
|
Вага
|
169.74 g
|
