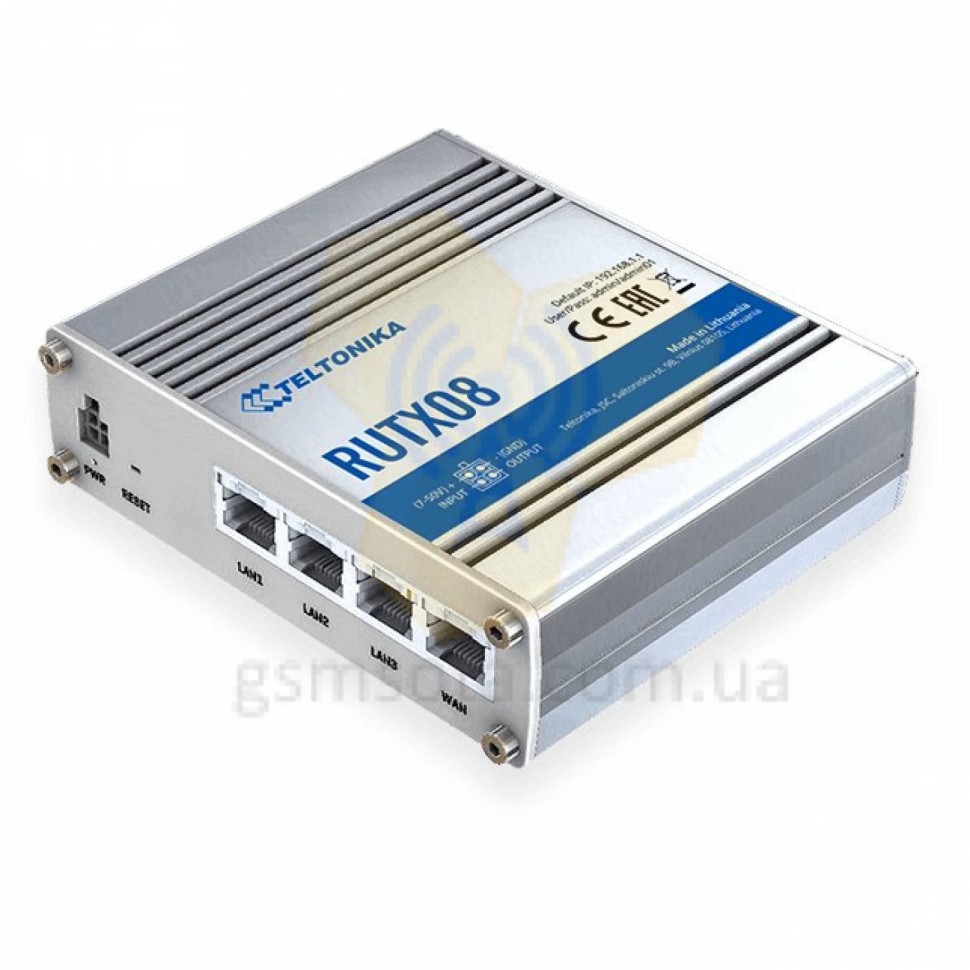

Teltonika RUTX08 – промышленный VPN-маршрутизатор, работающий на базе новейшей операционной системой Teltonika rutOS, основанной на OpenWRT. Устройство обладает производительным 4-х ядерным процессором ARM Cortex A7, 717 МГц с 256 Мб оперативной памяти и предназначено для сквозной передачи Ethernet-трафика. Маршрутизатор имеет 4 гигабитных порта, поддерживает несколько VPN-сервисов и может управляться удаленно.
RUTX08 способен удовлетворить большинство требований, которые предъявляются промышленными сетями связи и заказчиками малого и среднего бизнеса.
Поддерживаются USB-модемы на основе чипов Quectel EC25 и EG06.
| ETHERNET | |
| WAN | 1 x WAN (can be configured to LAN) 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 3 x LAN ports, 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| NETWORK | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, FTP, SMTP, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP |
| VoIP passthrough support | H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation, DHCP Relayd |
| QoS | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >25 service providers, others can be configured manually |
| Network backup | VRRP |
| SSHFS (optional) | Possibility to mount remote file system via SSH protocol (not available in standard FW) |
| MONITORING & MANAGEMENT | |
| WEB UI | HTTP, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log |
| FOTA | Firmware update from server, automatic notification. |
| SSH | SSH (v1, v2) |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems |
| SNMP | SNMP (v1, v2, v3), SNMP trap |
| JSON-RPC | Management API over HTTP |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
| SYSTEM CHARACTERISTICS | |
| CPU | Quad-core ARM Cortex A7, 717MHz |
| RAM | 256MB, DDR2 |
| FLASH memory | 256MB SPI Flash |
| FIRMWARE / CONFIGURATION | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW/configuration from server |
| RMS | Update FW/configuration for multiple devices |
| Keep settings | Update FW without losing current configuration |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with built environment provided |
| INPUT/OUTPUT | |
| Input | 1 x Digital Input (Non-isolated, Logic low 0...+5V, Logic high +8...+40V) |
| Output | 1 x Digital Output (open collector type, 30V@0.3A) |
| Events | EMAIL, RMS |
| USB | |
| Data rate | USB 2.0 |
| Applications | Samba share, custom scripts |
| External devices | Possibility to connect external HDD, flash drive, additional modem, printer |
| Storage formats | FAT, FAT32, NTFS |
| POWER | |
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards |
| Power consumption | 11W Max. |
| PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS) | |
| Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 3 x connection status LEDs, 5x connection strength LEDs, 8x LAN status LEDs, 3x WAN status LEDs, 1x Power LED |
| Power | 4 pin industrial DC power socket |
| USB | USB A socket for external devices |
| Reset | Reset/restore to default button |
| PHYSICAL SPECIFICATION | |
| Casing material | Full aluminium housing |
| Dimensions | 115 mm x 95 mm x 32 mm (H x W x D) |
| Weight | 357 g |
| Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 C to 75 C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Характеристики
| Для авто | Да |
| Поддержка PoE | Да |
| Тип оборудования | Роутер |
| Количество LAN портов | 3, 4 |
| Скорость LAN портов | 100 Мбит/ч, 1000 Гбит/с |
| Страна производитель | Литва |
| Бренды | teltonika |
Отзывы
Оставьте отзыв об этом товаре первым!
Сфера применения
- Сельское хозяйство
- Автомобильная промышленность
- Система автоматизации SCADA
- Торговые автоматы
- Умный город
- Энергетический сектор
Скачать
